Intelligent Lighting Control System

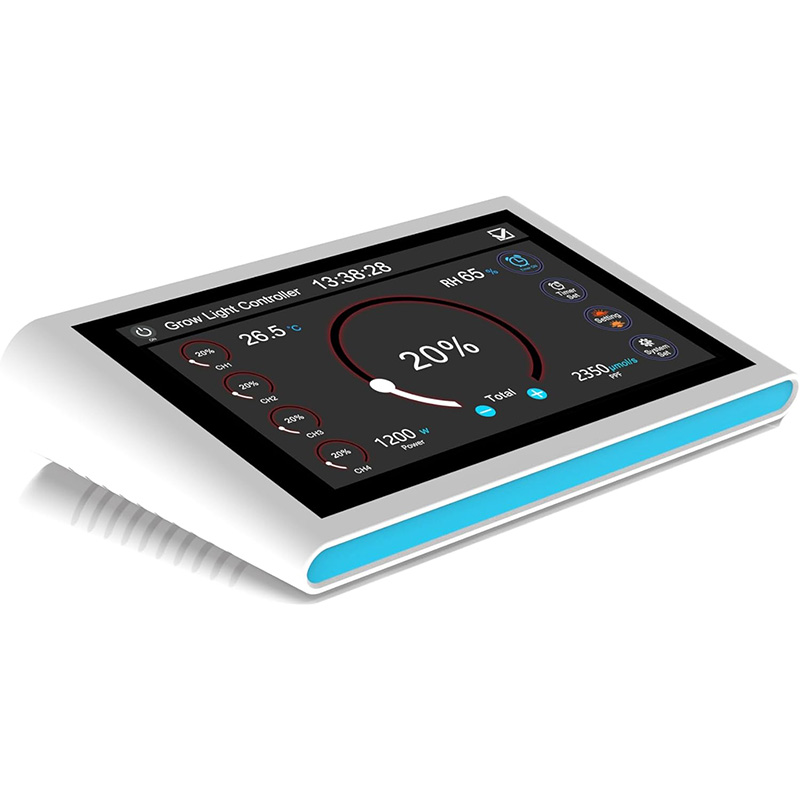

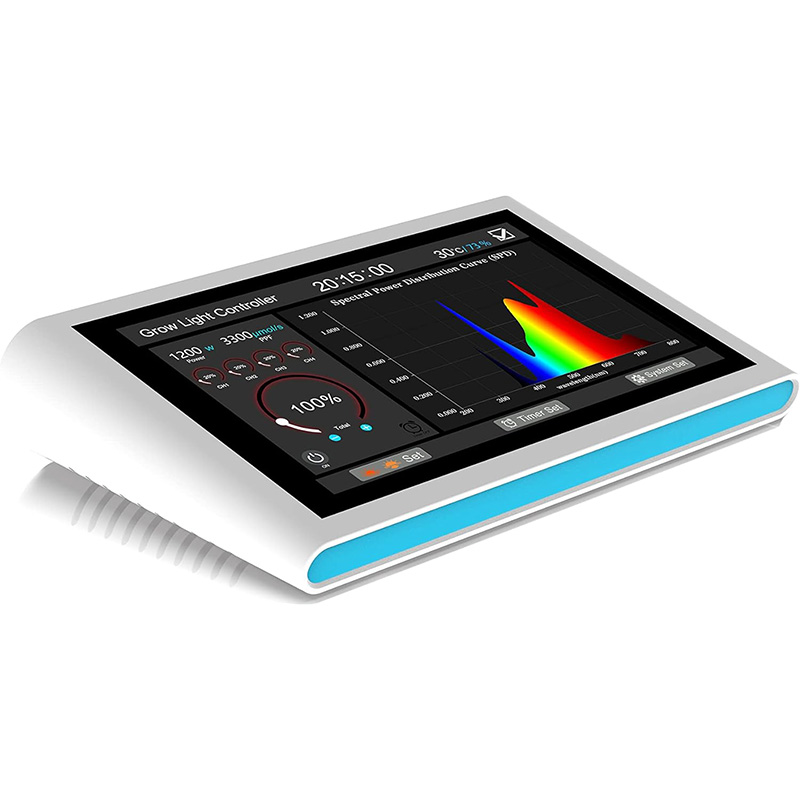

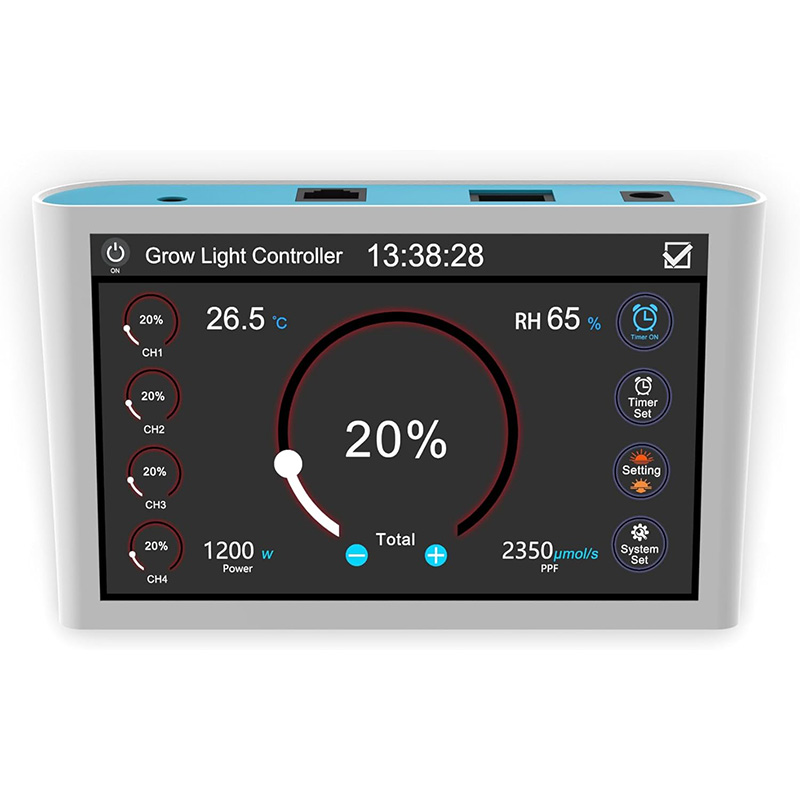

【Easy to use】: The plant growth lamp controller has a touch screen, which is more convenient to operate. You can set the parameters of the plant growth lamp through the touch screen.

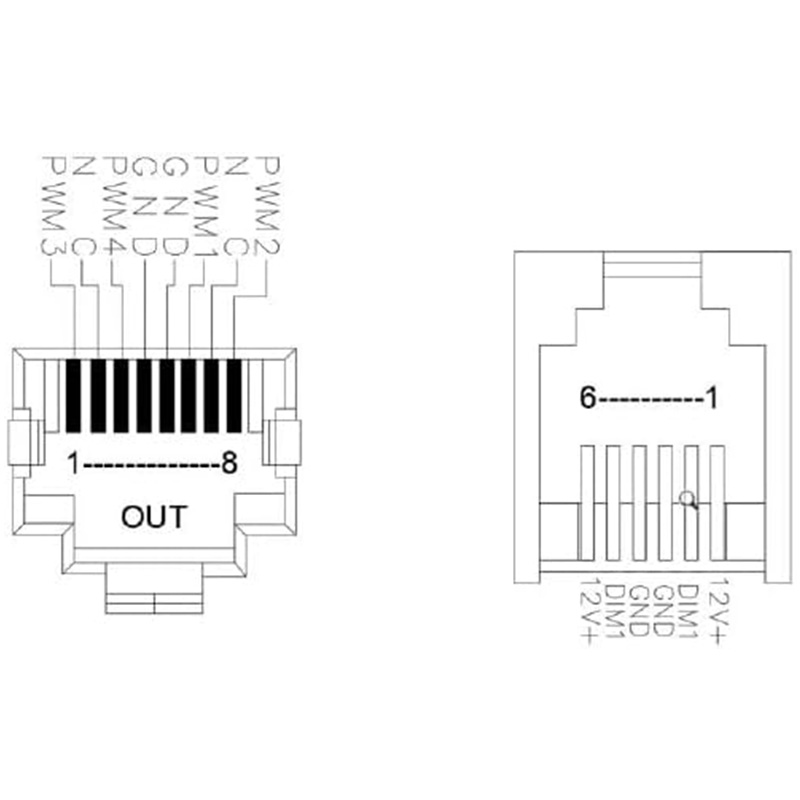

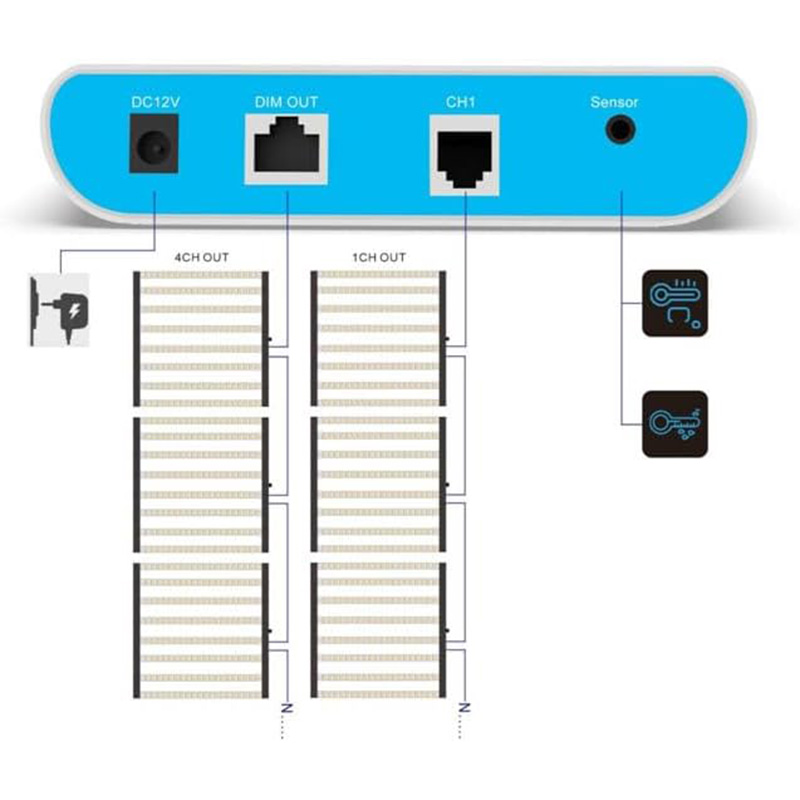

【Wide range of light control】: The growth lamp controller has two control interfaces, RJ14 and RJ45. The RJ14 interface is dedicated to CH1 control and can control up to 50 growth lamps. The RJ45 interface supports four channels (CH1, CH2, CH3, CH4) control. Each channel can control 50 growth lamps. Both interfaces support 0-10V and PWM control protocols.

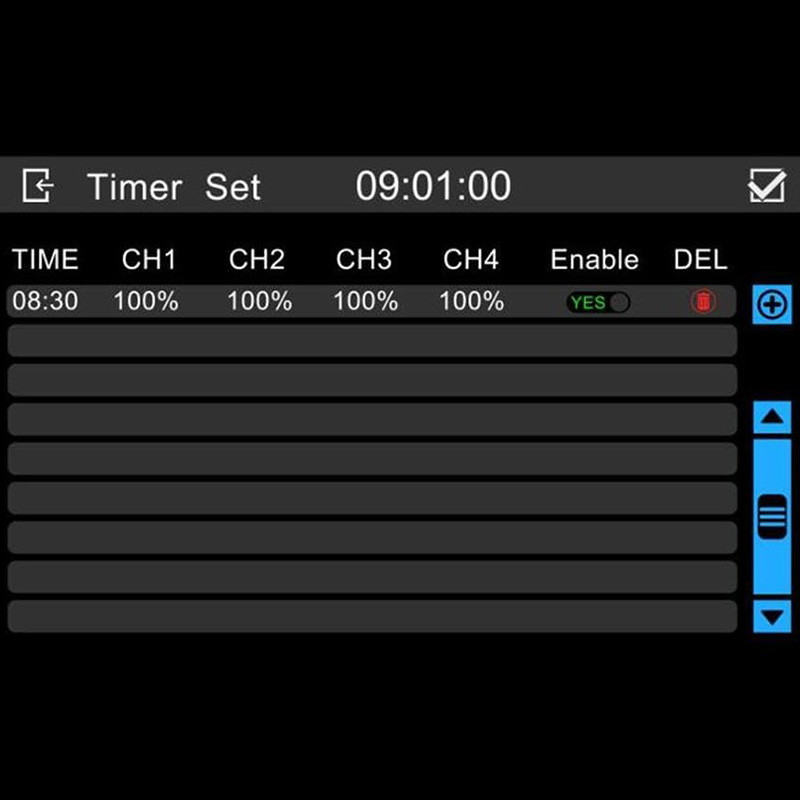

【Multi-level dimming and scheduling】: The growth lamp controller has a variety of dimming modes that can be adjusted according to the growth stage of the plant. The scheduling function allows you to set the working time of the growth lamp as needed.

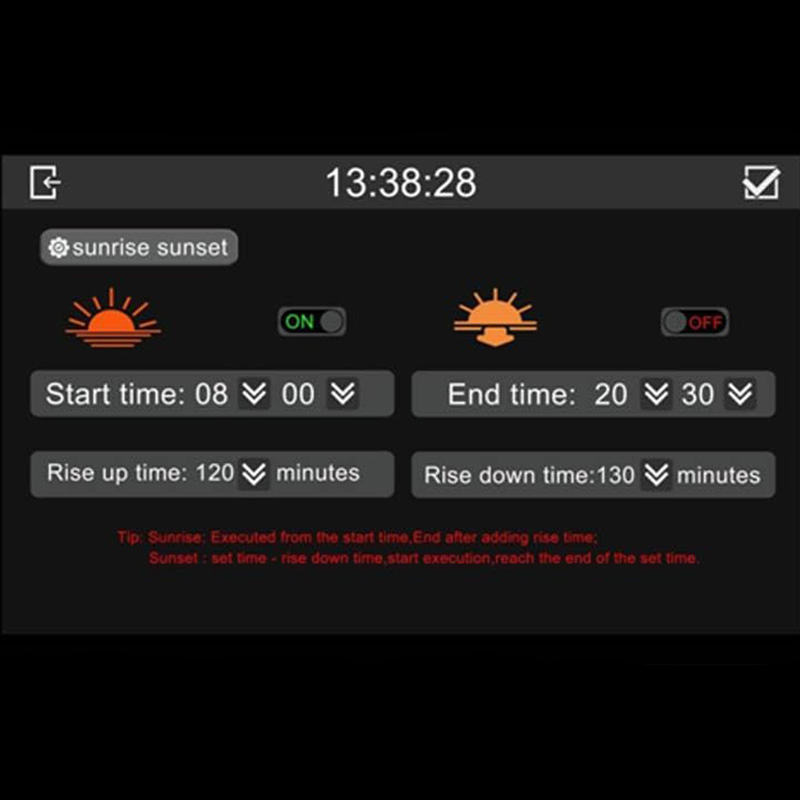

【Sunrise and sunset simulation】: The output range of the four channels is independently controlled from 0-100% (0-10V or PWM). The timer setting allows the lighting output ratio of all four channels to be adjusted at the same time to simulate sunrise and sunset.

【Remote control】: Supports Bluetooth control and WIFI remote control. WIFI remote control requires the purchase of WIFI separately GATEWAY accessories, you can purchase external temperature and humidity sensors separately to achieve more precise temperature and humidity control.
